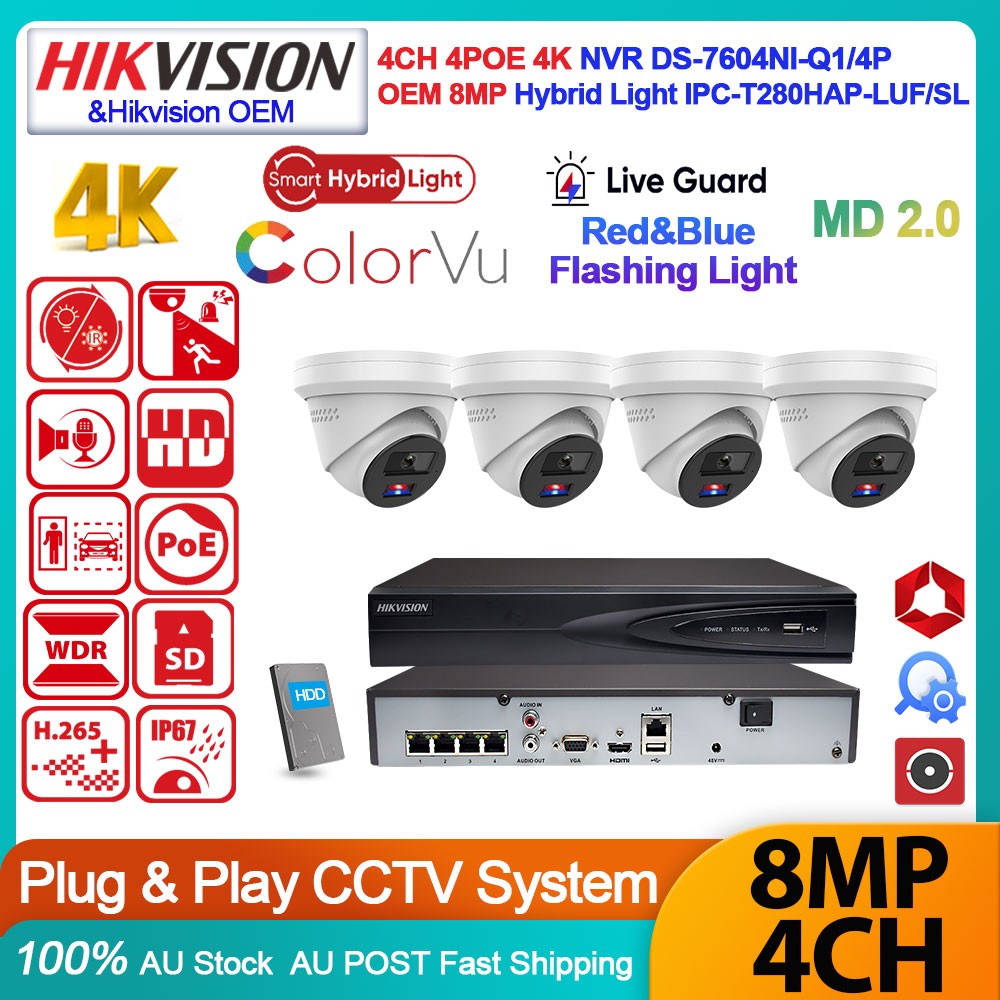

Hikvision 4K 8MP 4ch 4PoE Hybrid Light IP Camera Two-Way Audio MD2.0 System Kit
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 7 Thumbnail 8 Thumbnail 9 Thumbnail 10 Thumbnail 11 Thumbnail 12 Thumbnail 13 Thumbnail 14 Thumbnail 15 Thumbnail 16 Thumbnail 17 Thumbnail 18 Thumbnail 19 Thumbnail 20 Thumbnail 21 Thumbnail 22 Thumbnail 23 Thumbnail 24

Hikvision 4K 8MP 4ch 4PoE Hybrid Light IP Camera Two-Way Audio MD2.0 System Kit

GBP 372.00
Condition: New
Category: Electronics
View on eBay Back to Home
Fast Shipping
Estimated delivery in 3-5 days
Easy Returns
30-day returns, buyer pays return shipping
Hikvision 4K 8MP 4ch 4PoE Hybrid Light IP Camera Two-Way Audio MD2.0 System Kit




Hikvision OEM 4K 8MP Smart Hybrid Light MD 2.0 Fixed Turret Network Camera

  • High quality imaging with 8 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range light
  • Efficient H.265+ compression technology
  • Support on-board storage up to 512 GB (SD card slot)
  • Provide real-time security via built-in two-way audio
  • Support audio and siren alarm with red and blue flashing light
  • Water and dust resistant (IP67)




  • DS-7604NI-Q1/4P

    4-ch 1U 4 PoE 4K NVR

    • Up to 4-ch IP camera inputs
    • H.265+/H.265/H.264+/H.264 video formats
    • Up to 1-ch-8 MP/3-ch-4 MP/6-ch-1080p decoding capacity
    • Up to 40 Mbps incoming bandwidth





Hikvision OEM 4K 8MP Smart Hybrid Light MD 2.0 Fixed Turret Network Camera

  •
  • Camera
  • Image Sensor1/2.4" Progressive Scan CMOS
  • Max. Resolution3840 × 2160
  • Min. IlluminationColor: 0.005 Lux - (F1.6, AGC ON),B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
  • Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°

    4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

  • Lens MountM12
  • Iris TypeFixed
  • ApertureF1.6
  • DORI
  • DORI

    2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m

    4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

  • Illuminator
  • Supplement Light TypeIR,White Light
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • Video
  • Main Stream

    50 Hz:

    20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz:

    20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264,

    Sub-stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Region Of Interest (ROI)1 fixed region for main stream
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Audio
  • Audio TypeMono sound
  • Audio Sampling Rate8 kHz/16 kHz
  • Environment Noise FilteringYes
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
  • Network
  • SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Interface (Profile S, Profile T, Profile G),ISAPI,SDK
  • ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • ClientiVMS-4200,HiLookVision
  • Web Browser

    Plug-in required live view: IE 10, IE 11,

    Local service: Chrome 80+, Firefox 80+, Edge 89+

  • Image
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Image EnhancementBLC,HLC,3D DNR
  • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Privacy Mask4 programmable rectangle privacy masks
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage



    Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

  • Built-In MicrophoneYes,1 built-in microphone
  • Built-In SpeakerMax. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
  • Reset KeyYes
  • Event
  • Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • LinkageUpload to FTP/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,flashing light
  • General
  • Power

    12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

    PoE: IEEE 802.3af, Class 3, max. 9.5 W

  • MaterialMetal & Plastic
  • DimensionØ127.3 mm × 96.3 mm (Ø5" × 3.8")
  • Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • WeightApprox. 590 g (1.3 lb.)
  • With Package WeightApprox. 805 g (1.8 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
  • Flashing LightRed and Blue Light
  • Approval
  • EMC

    CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7

  • Safety



    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP67: IEC 60529-2013

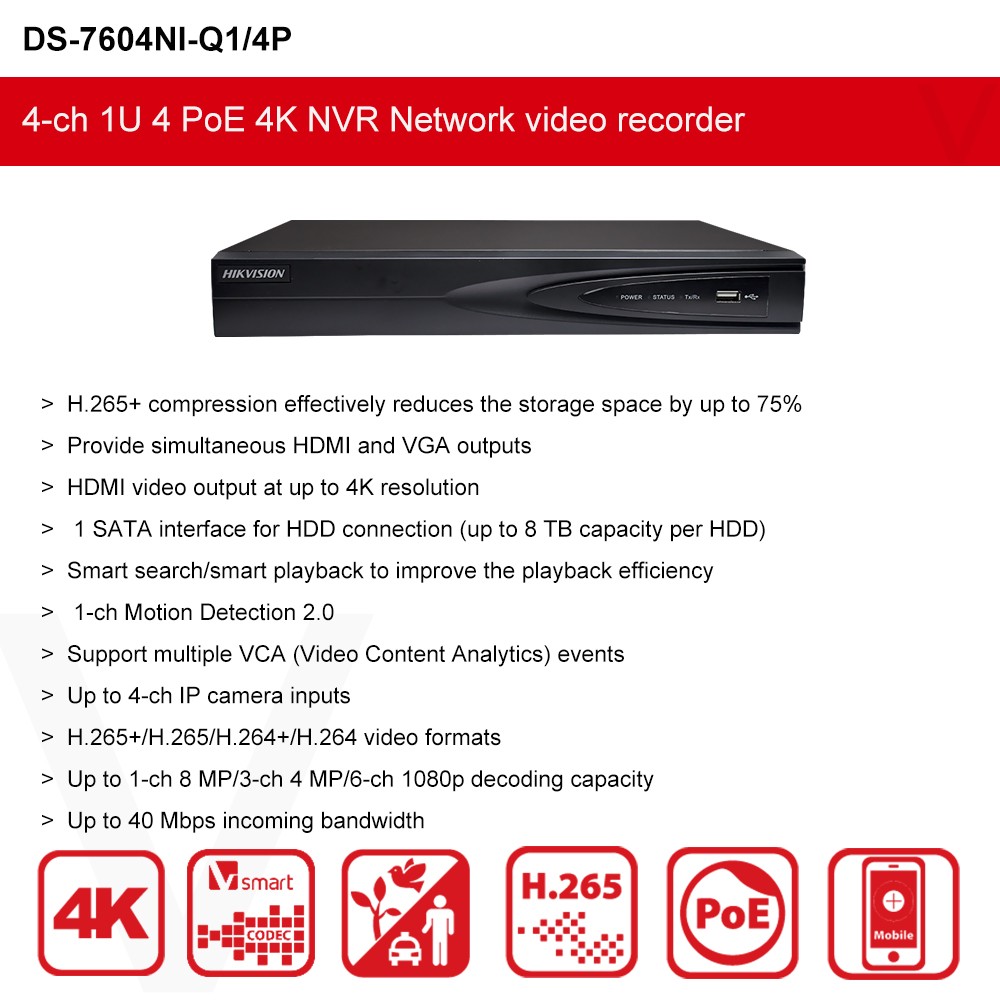

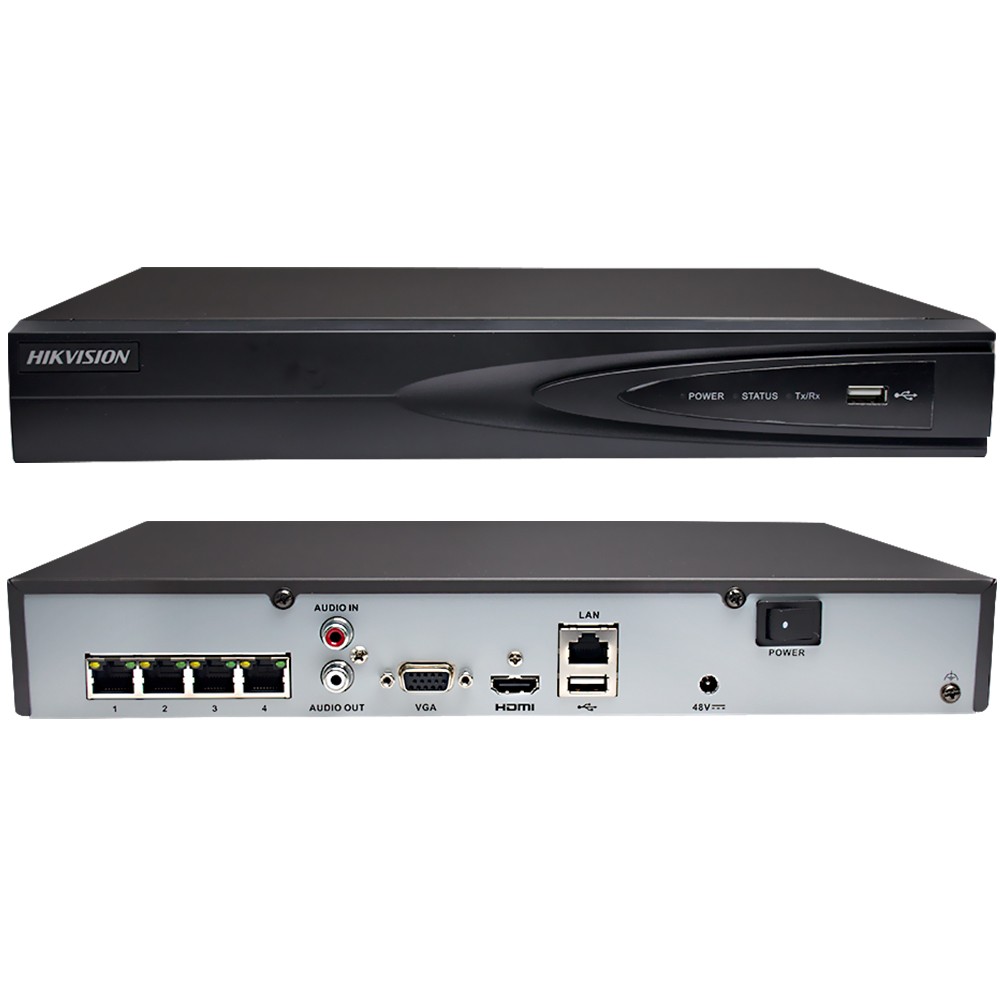

DS-7604NI-Q1/4P

4-ch 1U 4 PoE 4K NVR

  • Motion Detection 2.0
  • Human/Vehicle Analysis1-ch;4-ch
  • Video And Audio
  • IP Video Input4-ch
  • Incoming Bandwidth40 Mbps
  • Outgoing Bandwidth80 Mbps
  • HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz;1-ch, 4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz; ,HDMI/VGA simultaneous output,;1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; ,HDMI/VGA simultaneous output,;1-ch, 4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz ,HDMI/VGA simultaneous output,
  • VGA Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;HDMI/VGA simultaneous output,;1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz;1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;,HDMI/VGA simultaneous output,
  • Video Output ModeHDMI/VGA simultaneous output
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
  • Recording
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
  • Decoding
  • Decoding FormatH.265+,H.265,H.264+,H.264
  • Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Decoding Capability1-ch-8 MP (30 fps)/5-ch-1080p (30 fps)
  • Synchronous Playback4-ch
  • Network
  • Remote Connection32
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • PoE
  • Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power≤ 50 W
  • StandardIEEE 802.3 af/at
  • Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 8 TB capacity for each disk
  • USB Interface2 × USB 2.0
  • Alarm In/OutN/A (4/1 is optional)
  • General
  • Power Supply48 VDC, 1.35 A
  • Consumption≤ 10 W (without HDD, and PoE off)
  • Working Temperature-10 to +55º C (+14 to +131º F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
  • Weight≤ 1 kg (without HDD, 2.2 lb.)
  • Certification
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
  •

功能图.jpg_Copy113.jpg_Copy3904.jpg_Copy3575.jpg_Copy257

1.Hikvision OEM  4K 8MP Smart Hybrid Light Fixed Turret IP Camera
2.Hikvision DS-7604NI-Q1/4P 4-ch 1U 4 PoE 4K NVR *1
3.Accessory
配件2.jpg_Copy2
We are a company specializing in the sale of security products, mainly selling products include Hikvision original cameras and NVRs, Hikvision OEM cameras and NVRs, PG cameras and YCX cameras, and other brands of cameras and NVRs.
All items are 100% from Hikvision and other brands, include original and OEM versions.    All are from Hikvision and other brands' factory directly, please don't worry the quality.
Our company is one of the largest agents in China, in the security industry B2C market has many years of experience, always provide customers with the best quality service and the most favorable product prices.   If you are a product wholesaler, please feel free to choose us and we will give you the most satisfying shopping experience.   If you are not familiar with security products, please feel free to contact us, we will patiently answer for you.
1. Items will be shipped within 1 to 3 business days after order by the shipping way you chose.
2. As for some items, they are big and heavy, we don't set specific shipping fee, but actually we can send items to all over the world.  If you are interested, welcome to call us about shipping fee.  Different countries, the shipping fee vary.
3. If you want to order more items or you are wholesaler,you can make best offer with us ,we will provide you best price .
4. We regret that we can not be responsible for any wrong or undeliverable addresses.
1. Welcome to our store, I am selling all kinds of surveillance products, you can choose what you need.
2.  If you need more goods, but price is too high,
Or cannot find it in our store, please feel free to ask us.
3.  We do not cover customs tax or VAT under any circumstances.
4. We provide 30 days money back on non-defective, undamaged, unused and resalable products.
Restocking fee and other fee may apply upon the condition of returned products.
Shipping and handling fees are non-refundable.
Product is not eligible for refund after the 14-day refund period is expired.
Package Included NVR+2 cameras, no HDD
Brand Hikvision
Type Complete System
Connectivity Wired
Surveillance Technology IP/Network
Features Mini Surveillance Camera, Multiple Language Support, Night Light, Night Vision, Outdoor/Weatherproof, Plug in, Wall Mounted, Waterproof, Smart Hybrid Light, MD 2.0, red and blue flashing light, Human and Vehicle Detection, storage up to 512 GB, built-in two-way audio, up to 512 GB (SD card slot), Support audio and siren alarm with red and blue flashing light, 4K, 8MP, CCTV System
Model DS-7604NI-Q1/4P+OEM IPC-T280HAP-LUF/SL
Compatible Brand Hikvision
Location Outdoor & Indoor
Maximum Resolution 3840 × 2160
MPN IPC-T280HAP-LUF/SL, DS-7604NI-Q1/4P
Operating Sound Rating 120 dB
Number Of Cameras Included 4
Colour White
Colour Mode Colour
Manufacturer Warranty 3 Years
Built-in Two-way Audio Yes
Flashing Light Red and Blue Light
Smart Home Compatibility Hik-connect
Number Of Zones 4
Items Included Camera, NVR, HDD, All Optional
Number Of Channels 4
NVR Decoding Format H.265+,H.265,H.264+,H.264
NVR Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA...
PoE Interface 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
SATA 1 SATA interface
Storage Capacity Up to 8 TB capacity for each disk
